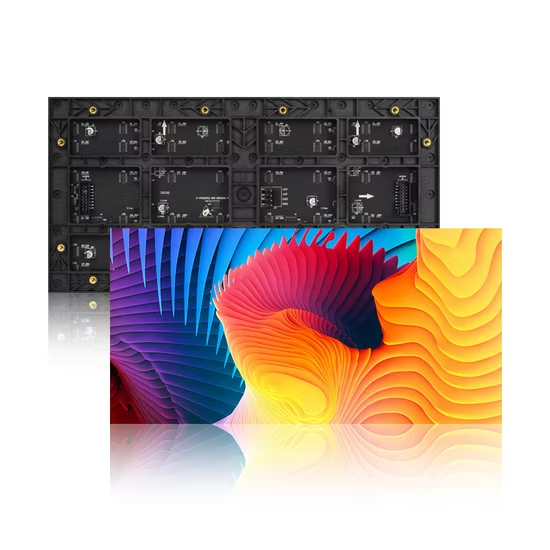

Indoor GOB SMD LED Module Screen P1.86
P1.86 indoor GOB SMD LED module screen with automatic 320 mm × 160 mm size and controller calculation.
Choose options & view priceSelect your configuration, then enter your company details to see its QAR price.
Need help choosing? Contact QsmartIndoor fixed full-colour SMD LED screen using 320 mm × 160 mm modules, 3840 Hz refresh, receiving cards and power supplies. Enter your required width and height below to calculate the exact buildable size, module quantity and resolution.
Three-year warranty.
GOB surface protection.
INDOOR SMD LED MODULE SCREEN
Build your P1.86 screen
Enter the required size. The calculator rounds up to complete 320 mm × 160 mm modules and shows the exact buildable screen. Maximum buildable area: 30 m².
Calculated technical quantities
- Power supplies (300 W)
- —
- Receiving cards
- —
- Receiving-card cables
- —
- Long colour cables (60 m)
- —
- Long colour cables (40 m)
- —
The emailed quotation includes the screen, LED Display Controller, structure and installation. The controller is selected for the required pixel load and resolution.
Technical specifications
Pixel pitch: P1.86 Display type: Indoor fixed, front-maintenance full-colour SMD LED Module: 320 mm × 160 mm magnetic module Surface protection: GOB Refresh rate: 3840 Hz LED Display Controller: Selected automatically for the required pixel load and resolution Screen area: 0.0512 m²
Planning this display for your space
Indoor LED module screens are assembled to a buildable size rather than a television diagonal. Compare pixel pitch, viewing distance, total resolution and service access as one system.
Viewing distance and content
Review fine text, video and graphics at the closest normal viewing position. A finer pixel pitch can increase resolution for the same area, but the content and viewing distance determine whether that difference is useful.
Buildable dimensions
Use the calculator to check complete module increments. Confirm the resulting width and height against the available wall area and surrounding finishes. Include the support structure and trim in the final installation drawing.
Controller and signal
Check the total pixel count and controller arrangement. Agree the input sources, playback resolution and scaling method. Native content that matches the screen aspect ratio avoids unexpected cropping or empty bands.
Power and maintenance
Ask for maximum and typical power requirements, cable routing and isolation arrangements. Confirm front-service clearance, spare modules and calibration support. These must be defined for the full screen and its installation.
Questions to confirm before ordering
Will the finished LED screen match my requested dimensions exactly?
The calculator rounds up to complete 320 mm × 160 mm modules. Review the displayed buildable size and final structure dimensions before placing an order.
What is included in installation and support?
Ask for mounting, cabling, delivery, commissioning, software setup and warranty terms to be listed in the quotation. Coverage varies by product and project; confirm the agreed scope before payment.
