Energy-Saving COB PH1.25 Indoor LED Display Screen

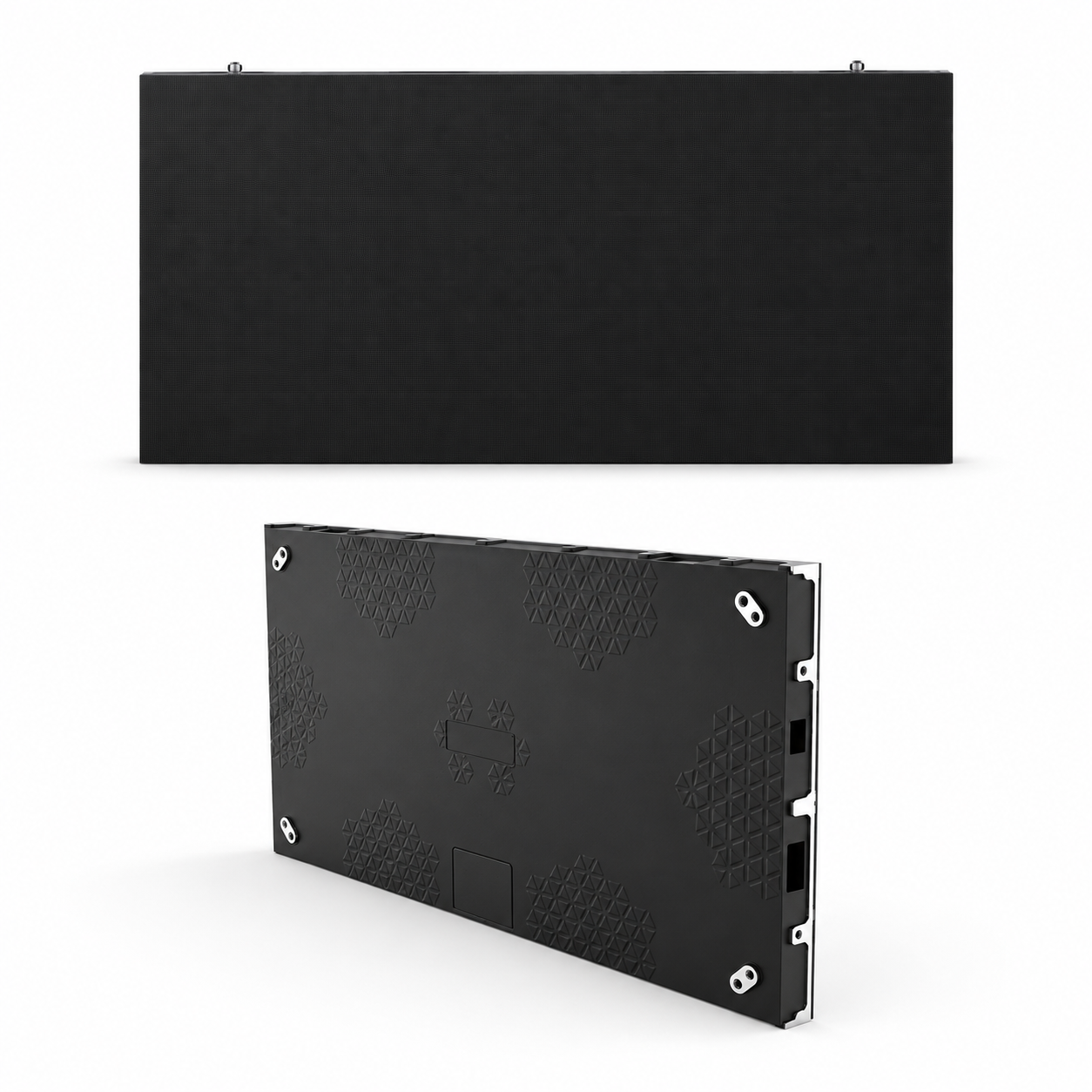

Energy-saving COB PH1.25 indoor LED display with exact 600 mm × 337.5 mm cabinet sizing.
Choose options & view priceSelect your configuration, then enter your company details to see its QAR price.
Need help choosing? Contact QsmartEnergy-saving indoor COB PH1.25 LED display built from 600 mm × 337.5 mm 16:9 cabinets. Enter dimensions in exact cabinet increments. Screen pricing includes cabinets, power supplies, receiving cards and associated screen components. Controller, structure and installation are added separately.
Three-year warranty.
ENERGY-SAVING COB INDOOR LED DISPLAY
Build your PH1.25 screen
Enter dimensions in exact 0.6 m width and 0.3375 m height increments. Only complete 600 mm × 337.5 mm cabinets are accepted. Request a quotation for the screen, controller, structure and installation. Maximum buildable area: 30 m².
Calculated technical quantities
- Power supplies (300 W)
- —
- Receiving cards
- —
- Receiving-card cables
- —
- Long colour cables (60 m)
- —
- Long colour cables (40 m)
- —
The emailed quotation includes the screen, LED Display Controller, structure and installation. The controller is selected for the required pixel load and resolution.
Technical specifications
Pixel pitch: PH1.25 Display type: Energy-saving indoor COB LED Technology: Energy-saving COB indoor LED Cabinet: 600 mm × 337.5 mm (16:9) Cabinet resolution: 480 × 270 pixels Cabinet weight: 5.5 kg Module: 300 mm × 168.75 mm Module resolution: 240 × 135 pixels Module weight: 450 g Pixel density: 640,000 dots/m² LED lamp: 1R1G1B Brightness: At least 600 cd/m² Best viewing distance: 1.25-50 m Viewing angle: 160° horizontal and vertical Brightness adjustment: Manual 256 levels; automatic 8 levels Grey scale: 16-bit, 256 shades per colour Operating environment: -30°C to +60°C, 10%-95% RH LED lifetime: More than 100,000 hours Input: AC 110V/220V ±10%, 50/60 Hz Power consumption: Maximum 350 W/m²; average 150 W per cabinet Refresh rate: 3840 Hz Frame rate: More than 60 frames/second Defect rate: 0.0001 or less Humidity: 0-90% Control method: Synchronized with computer monitor MTBF: More than 50,000 hours Colour temperature: 6500K ±500 Colours: More than 16.7 million LED Display Controller: Selected automatically for the required pixel load and resolution Screen area: 0.2025 m²
Planning this display for your space
Start with the job the display needs to do, then compare hardware and installation together. A useful quotation identifies the exact configuration and who is responsible for each part of the project.
Write a short brief
Record the location, intended audience, screen orientation, approximate size and operating schedule. Include photographs and the viewing distance. Describe whether visitors only watch content or need to interact with it.
Separate included and optional items
Ask for the display, mount, computer, software, delivery and installation to be identified clearly. List recurring licences separately from one-time costs. Compare quotations against the same brief so missing items are visible.
Plan the site
Check the access route, mounting surface, power and network availability. Qatar indoor and exterior locations can present very different environmental conditions; verify the exact model’s operating limits for the chosen position.
Agree acceptance and support
Define the content and connection tests required at handover. Confirm the warranty period, exclusions, service process and contact details in writing. Keep the product identifier, approved configuration and quotation together for future support.
Questions to confirm before ordering
What should I send when requesting a quotation?
Share the intended location, screen type or size, quantity, viewing distance, content source and installation requirements. If those are undecided, start with photographs and a description of the job.
What is included in installation and support?
Ask for mounting, cabling, delivery, commissioning, software setup and warranty terms to be listed in the quotation. Coverage varies by product and project; confirm the agreed scope before payment.
